HA-500CACE
SS期兼用0.5トン運搬車
- 私象形構造とコンパクトな運搬機能(最大積載量600kg)
- 最悪の作業環境でも最高の性能
- 最高の走行エンジン搭載
かんがみエスエスは、さまざまな環境や目的に合った製品を
検証された品質と最新の技術、優れたデザインで提供しています。
かんがみエスエスは、さまざまな環境や目的に合った製品を
検証された品質と最新の技術、優れたデザインで提供しています。

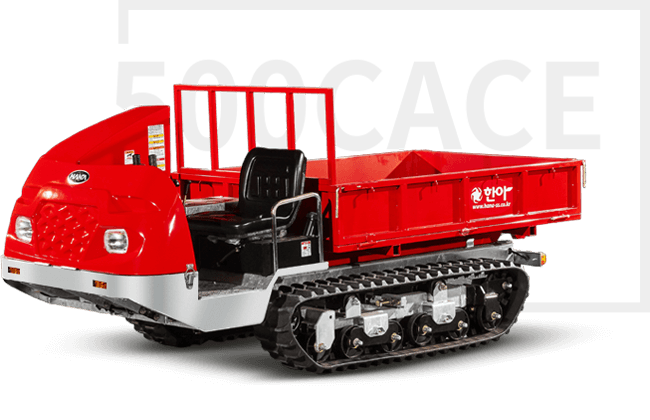

HA-500CACE
不整地や密植獣姦など最悪の地形で真価発揮
MODEL : HA-500CACE | |||||
---|---|---|---|---|---|
Length*Width*Height | mm | 2800*1230*1250 | |||
Weight | kg | 745 | |||
Main Part | Driving Format | Caterpillar type | |||
Shift gear type | Forward 2nd, Reverse 1st, Sub-shift 2nd | ||||
Steering | Steering brake type | ||||
Driving Clutch Format | Belt tension type | ||||
Brake | Mechanical (internal expansion) | ||||
Speed | km/h | Max: 6.6 Min: 2.1 | |||
Driving engine part | Format | KOHLER CH640(USA) | |||
Max. Output | kw(ps) | 15 | 16.8 | ||
Continuous rated rotational speed | rpm | 3000 | 3100 | ||
Format and standard | 2-cylinder 4-cycle air-cooled | ||||
Fuel type | Unleaded gasoline | ||||
Tank Capacity | L | 16 | |||
Type of lubricant | SAE 10W-30, API SH, SJ or higher | ||||
Tank Capacity | L | 1.5 | |||
Max Torque | Nm | 44.06 | |||
Hydraulic system | Hydraulic cylinder type | Double acting hydraulic cylinder | |||
Hydraulic pump type | Gear type | ||||
Discharge pressure | kg.f/cm3 | 140 | |||
Type of hydraulic oil | ISO VG 46# | ||||
Tank Capacity | L | 2.7 | |||
Carrying capacity | kg | 600 | |||
Loading box size | mm | 1600*1110*270 |
