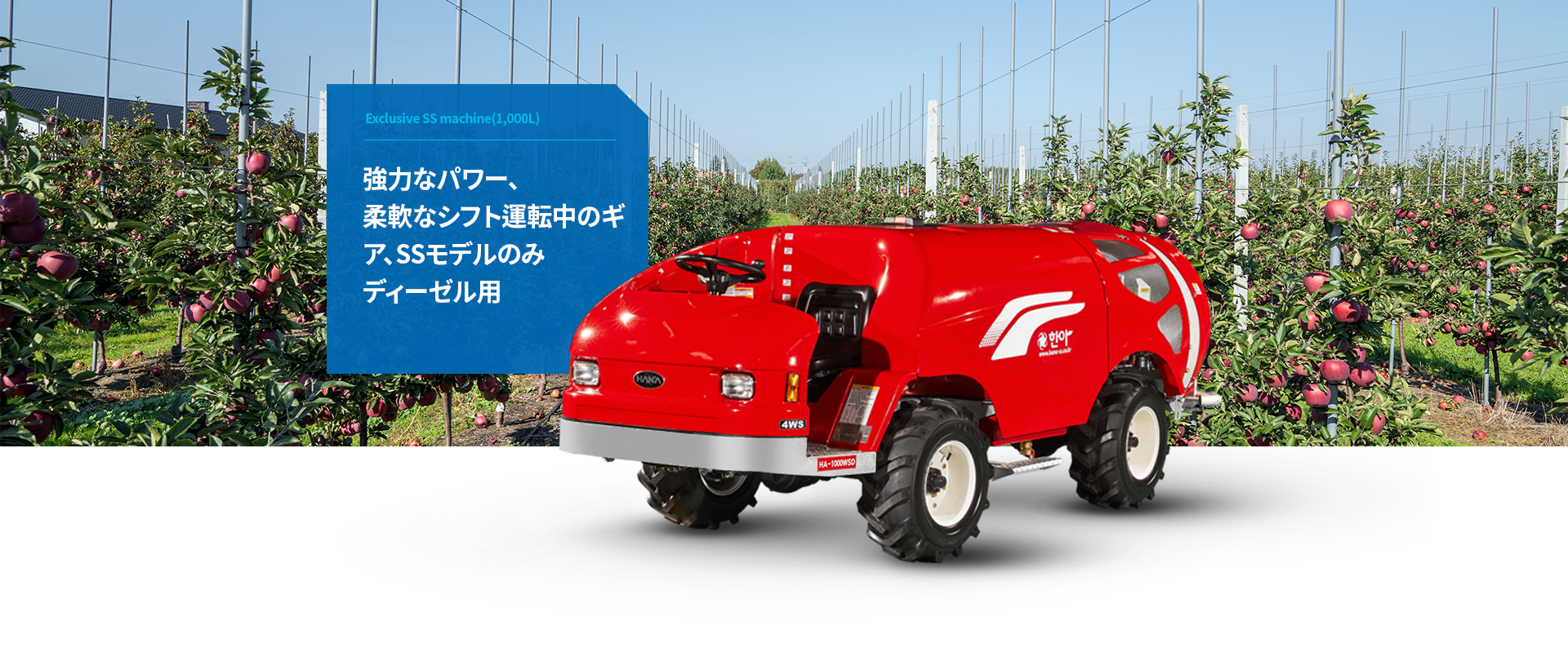

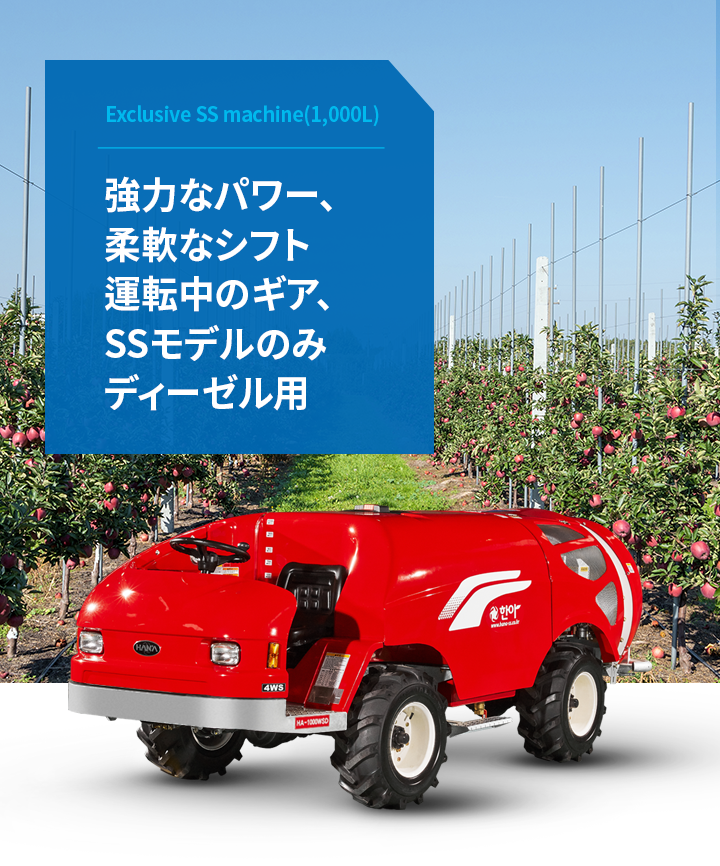

HA-1000WSD
専用 SS(1,000L)
- 65馬力のターボエンジンの強力なパワーと1000L薬液タンク防除
- 最大12M薬剤分交差点
- ジェットノズル2の攪拌方法で薬剤の均等な配合
- 狭い作業環境内の運営が可能な後輪操舵方式で最小回転半径
- 運転者の疲労感を軽減するサスペンションが組み込まれて超クールなシートと広い空間
かんがみエスエスは、さまざまな環境や目的に合った製品を
検証された品質と最新の技術、優れたデザインで提供しています。
かんがみエスエスは、さまざまな環境や目的に合った製品を
検証された品質と最新の技術、優れたデザインで提供しています。
HA-1000WSD

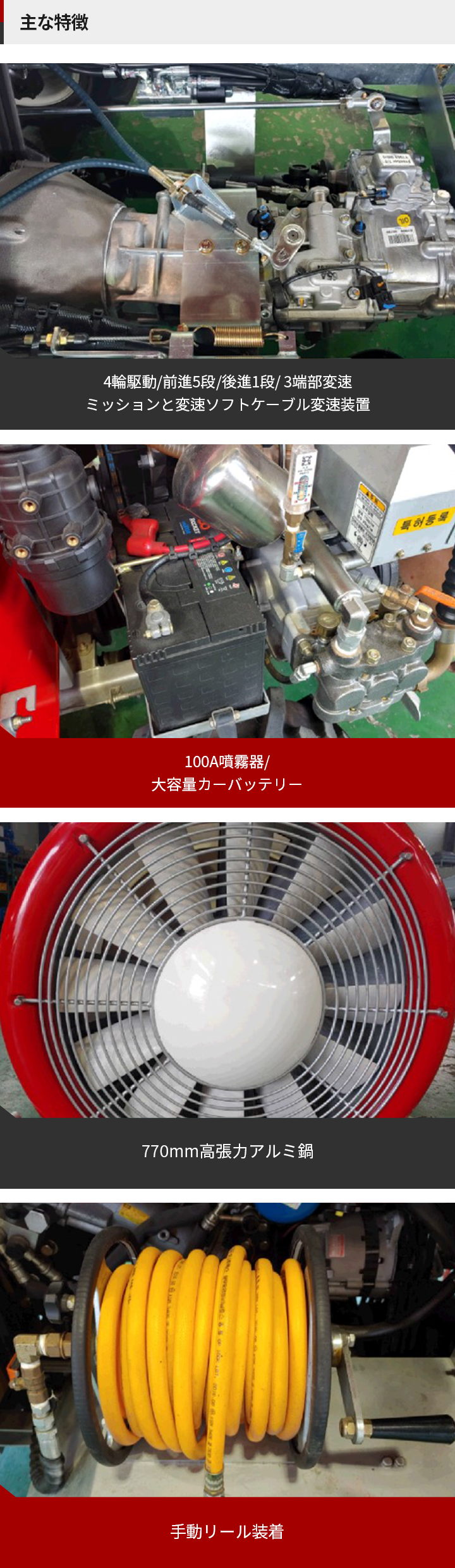

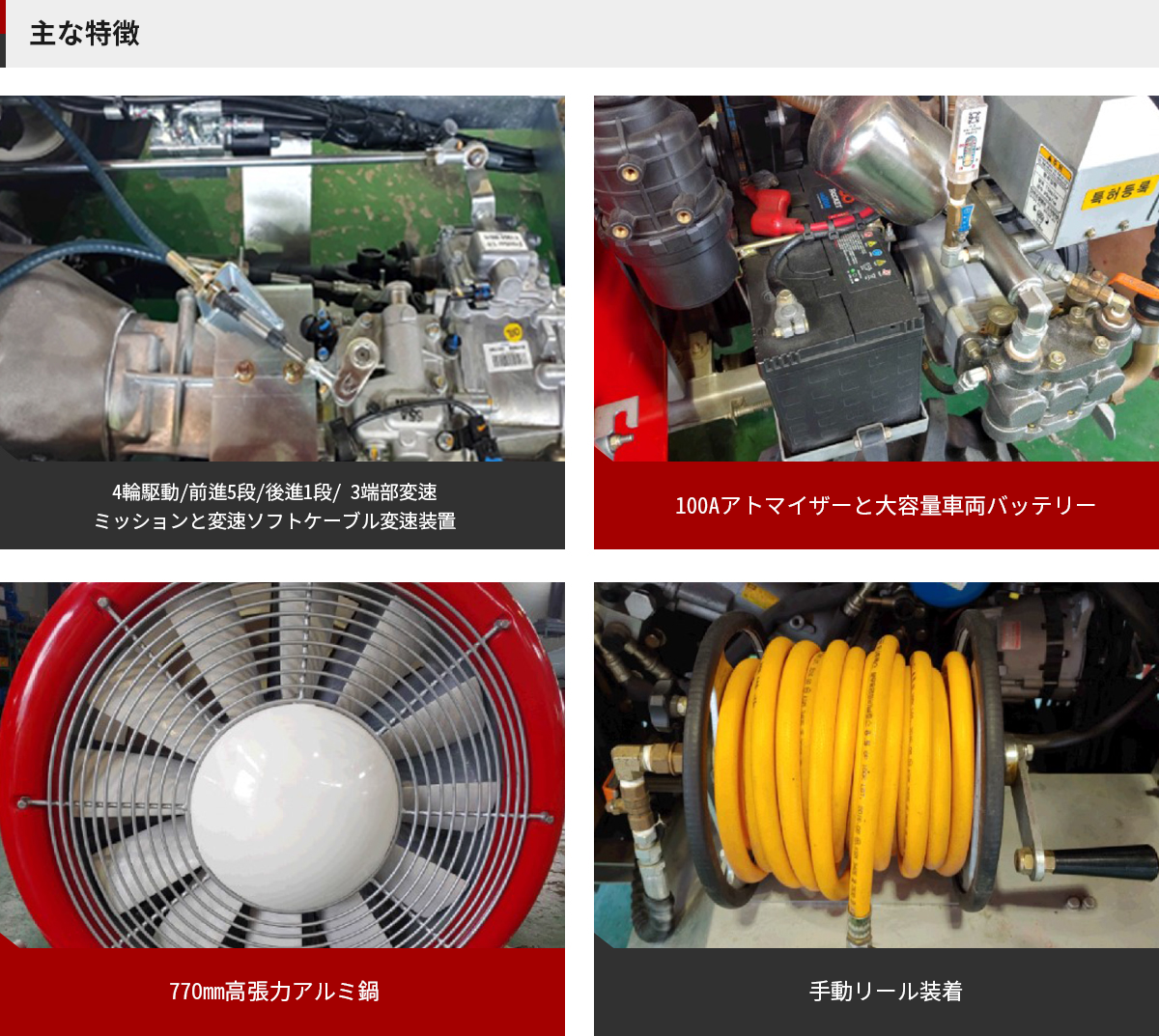

自動車と同じ走行システムで前進5段、後進1段、副変速2段適用
腐食がない永久アプリケーション塗装方式を採用
MODEL : HA-1000WSD |
|||
---|---|---|---|
Capacity |
L |
1000 |
|
Length*Width*Height |
mm |
3850*1450*1345 |
|
Weight |
kg |
1435 |
|
Driving Part |
Number of speed-changing step |
Forward 5th gear, revers 1st gear, secondary shift 2nd gear |
|
Steering method |
Steering wheel type |
||
Driving clutch type |
Disc friction type (dry single plate) |
||
Stop brake |
Parking brake |
Caliper type (hydraulic/pedal type)/Caliper type (mechanical/lever type) |
|
Forward speed |
km/h |
1.6 ~ 15.5 |
|
Reverse speed |
km/h |
1.6 ~ 3.4 |
|
Installed Engine Part |
form |
Hyundai D488 T/C engine |
|
Maximum output |
ps/rpm |
65 |
|
Rated output |
ps/rpm |
52 |
|
Format and Standard |
Accumulated water-cooled 4-cylinder 4-stroke diesel engine |
||
Fuel Type |
Gasoline |
||
Fuel Tank Capacity |
L |
48 |
|
Lubricant Type |
Over SC level |
||
Lubricant Volume |
L |
5.4 |
|
No-load number of rotations |
rpm |
2900 |
|
Blower |
Spray method |
type |
Axial flow type/Both side spray type |
Pumping out diameter |
Ø |
770 |
|
Number of wings |
ea |
13 fixed, 12 rotating |
|
Water pump |
m3/min |
Jet Pump |
|
Caliber |
mm |
Inhale Ø 13, Discharge Ø36 |
|
Sprayer |
Type name |
YH-100A |
|
Format |
Horizontal triple plunger type |
||
Number of rotations |
rpm |
750 |
|
Nozzle type |
Blower Head |
Disc shape/Ø 1.4-24ea, Ø 1.2- 24ea |
|
Rated pressure |
kPa |
1470 |
|
Maximum pressure |
kPa |
3922 |
|
Chemical solution mixing method |
Classification type |
||
Discharger diameter, number |
mm |
Ø25mm, 1ea |
|
Minimum height from ground |
170 |
||
Driving method |
4 wheel drive type |
||
Driving type |
Wheel type |
