HA-500CM Ⅲ
軌道型 SS(500L)
- 車体重心バランスが優れている軌道消耗率を最小に

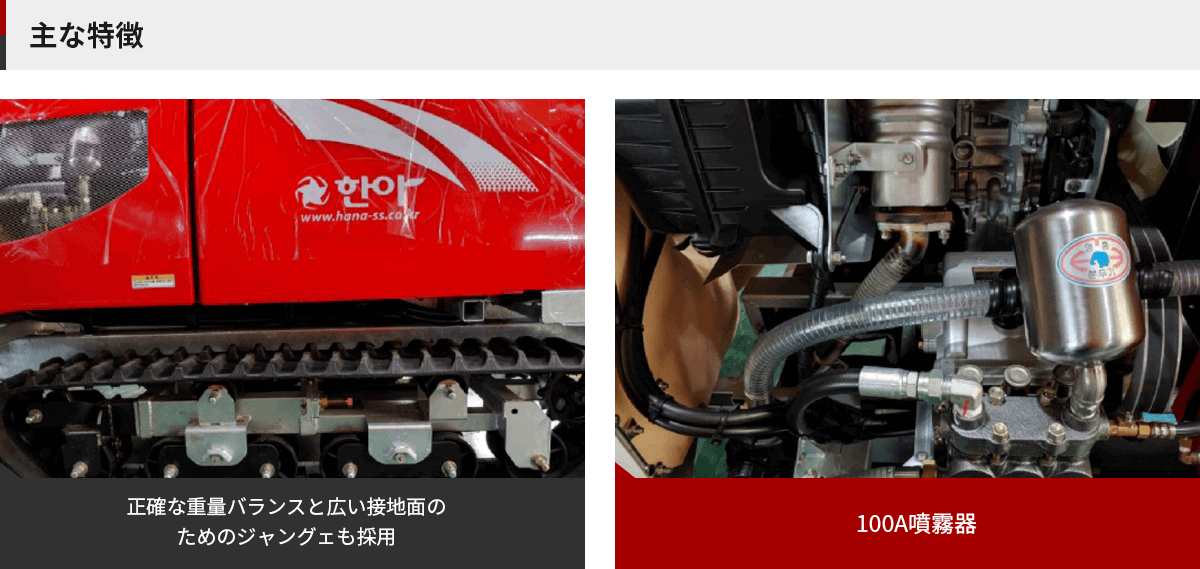

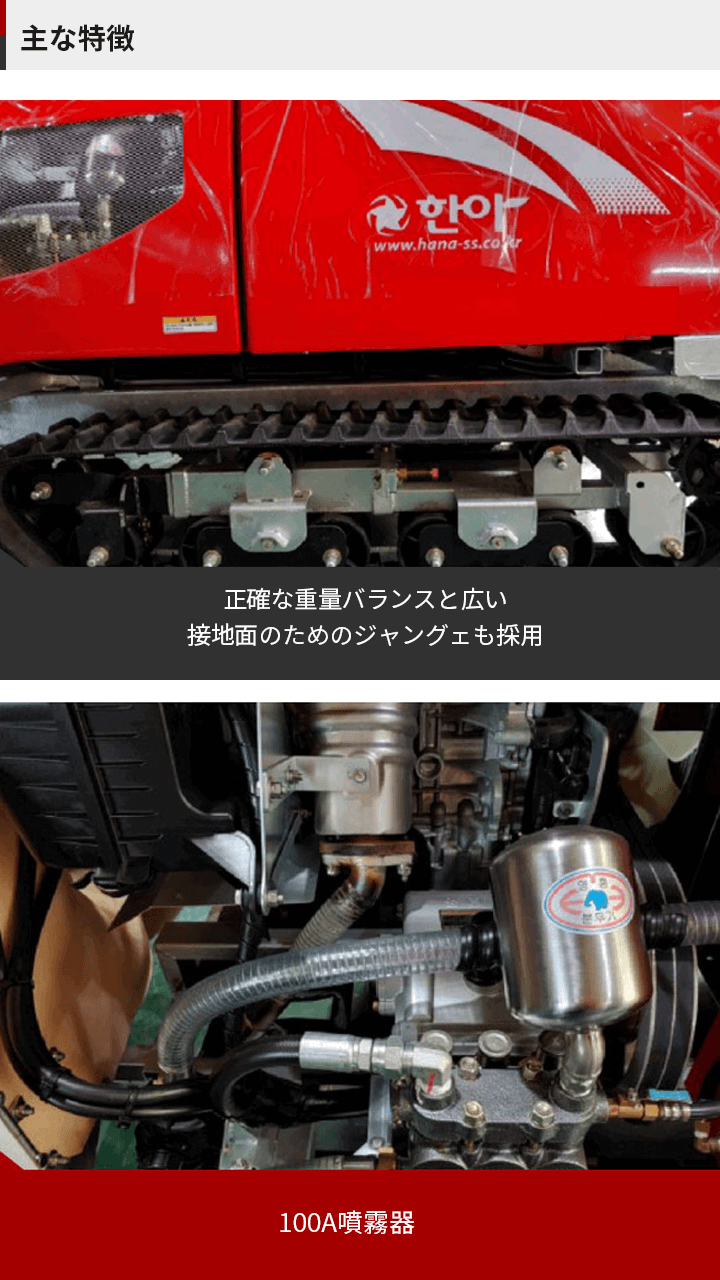

- 国内最大サイズのクローラートラック(48リンク)を装着して極端な条件で動作可能
- クラス最小サイズのコンパクトなデザインとゆったりとした運転空間
かんがみエスエスは、さまざまな環境や目的に合った製品を
検証された品質と最新の技術、優れたデザインで提供しています。
かんがみエスエスは、さまざまな環境や目的に合った製品を
検証された品質と最新の技術、優れたデザインで提供しています。
HA-500CM Ⅲ
不正れるもちろん密植獣姦、低ドクミト作業など、最悪の条件で完璧なパフォーマンス
腐食がない永久アプリケーション塗装方式を採用
クラス最小サイズの胴体のサイズとゆったりとした運転空間と各種計器
MODEL : HA-500CM III |
|||
---|---|---|---|
Capacity |
L |
500 |
|
Length*Width*Height |
mm |
3200 * 1255 * 1325 |
|
Weight |
kg |
1119 |
|
Driving Part |
Number of speed-changing step |
Forward 5th gear/revers 1st gear/ secondary shift 2nd gear |
|
Steering method |
Steering lever type |
||
Driving clutch type |
Belt tension type |
||
Brake |
Mechanical type (internal expansion) |
||
Maximum Speed |
km/h |
1.5 ~ 6.7 |
|
Minimum Speed |
km/h |
1.5 ~ 3 |
|
Driving part Engine |
Form |
KOHLER CH640(USA) |
|
Maximum Output |
kw/rpm |
20/3600 |
|
Rated Output |
kw/rpm |
15/3000 |
|
Format and Standard |
2-cylinder 4-cycle air-cooled |
||
Fuel Type |
Unleaded gasoline |
||
Tank Capacity |
L |
15 |
|
Lubricant Type |
SAE 10W-30/API SH, over SJ level |
||
Capacity |
L |
1.5 |
|
Maximum Torque |
Nm |
44.06 |
|
Blower Engine |
Form |
G4FC |
|
Maximum Output |
kw/rpm |
45/5000 |
|
Rated Output |
kw/rpm |
37/3600 |
|
Format and Standard |
Water-cooled four-cylinder gasoline engine |
||
Fuel Type |
Unleaded gasoline |
||
Tank Capacity |
L |
30 |
|
Fan power transmission method |
Over SAE 10W-30/API SJ/ SL level |
||
Capacity |
L |
3.3 |
|
Maximum Torque |
Nm |
14.5 |
|
Blower |
Spray method |
type |
Axial flow type/Both side spray type |
Discharger diameter |
Ø |
710 |
|
Number of rotations |
rpm |
2800 |
|
Air volume |
m3/min |
588 |
|
Fan power transmission method |
Single friction clutch type |
||
Sprayer |
Type name |
YH-100A |
|
Format |
Horizontal triple plunger type |
||
Number of rotations |
rpm |
770 |
|
Nozzle type |

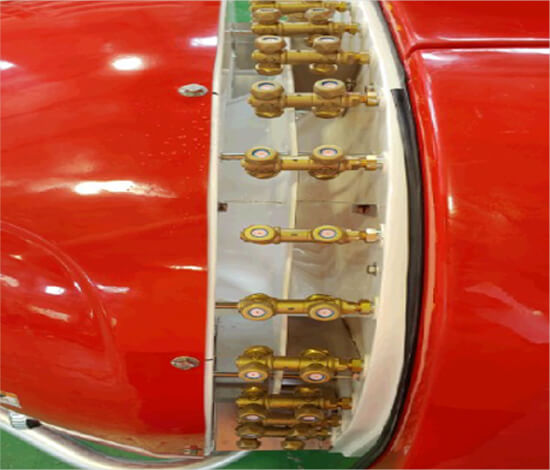

Blower Head |
Disc shape Ø 1.0-26ea, Ø 1.2-26ea |
|
Rated pressure |
f/cm2 |
15kg.f/cm2 |
|
Maximum pressure |
f |
40kg.f |
|
Chemical liquid mixing method |
Classification type |
||
caliber |
mm |
1.0, 1.2, 1.4mm |
|
Required power |
hp |
5 -7 Hp |
|
Discharge amount |
l/min |
103l/min |
|
Driving type |
Caterpillar type |
