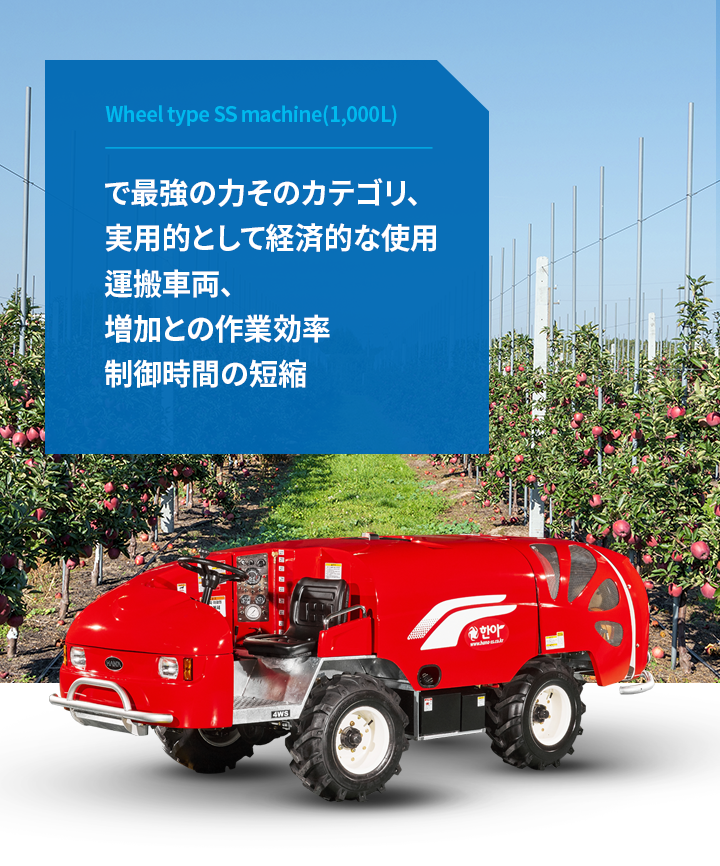

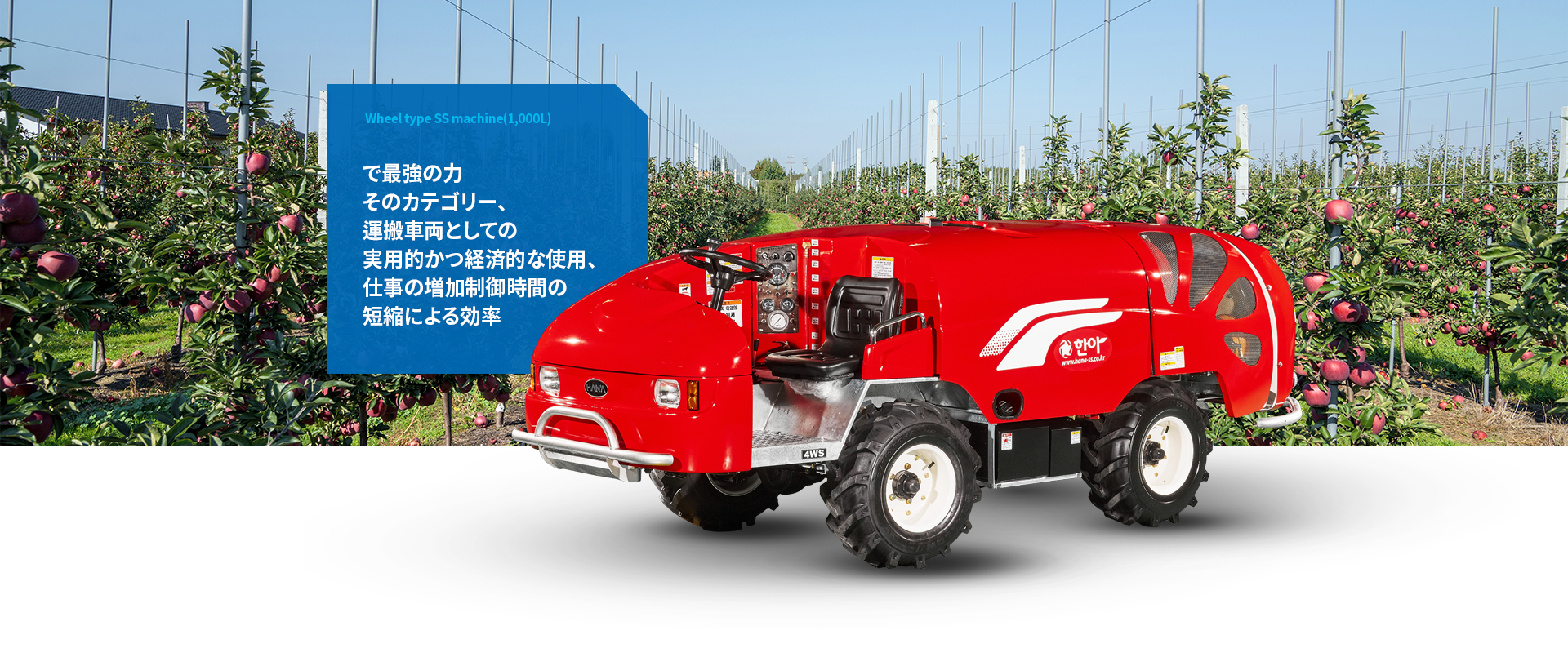

HA-1000WMS Ⅵ
車輪型 SS(1,000L)
- 国内クラス最大の強力なパワーと耐久性の米国コーラ25馬力ガソリン走行エンジン

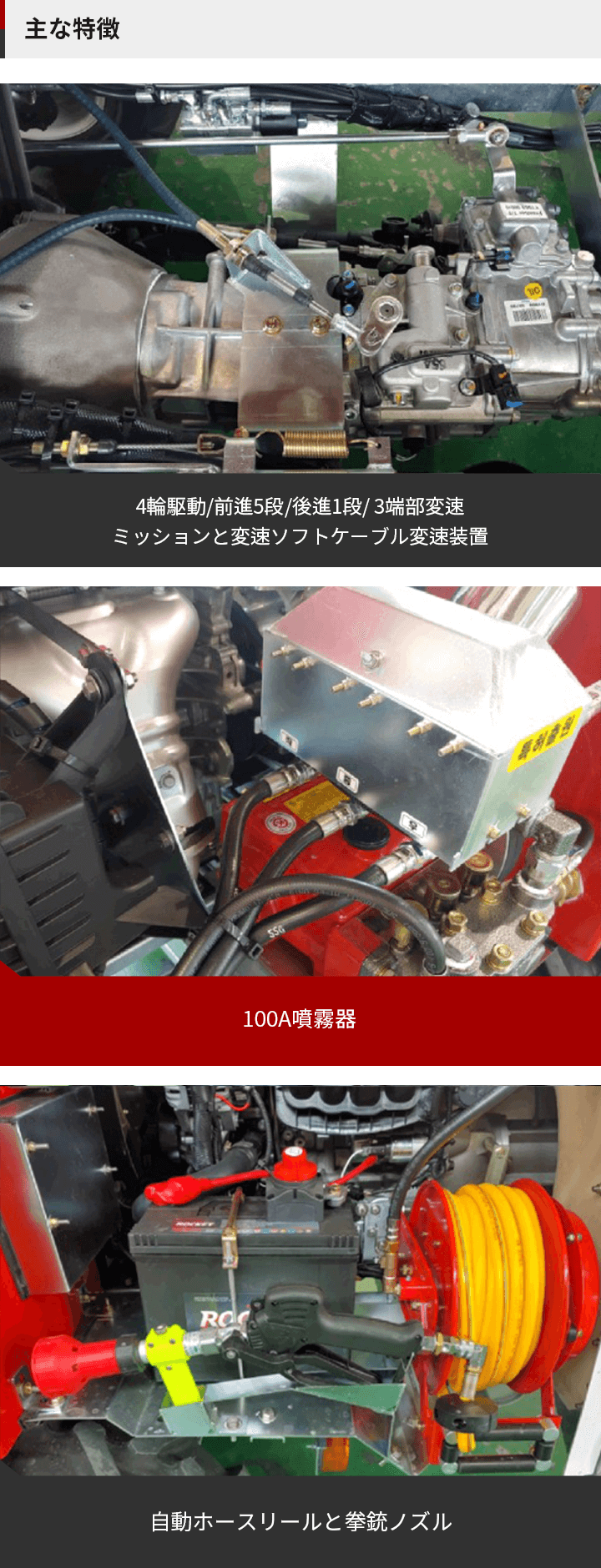

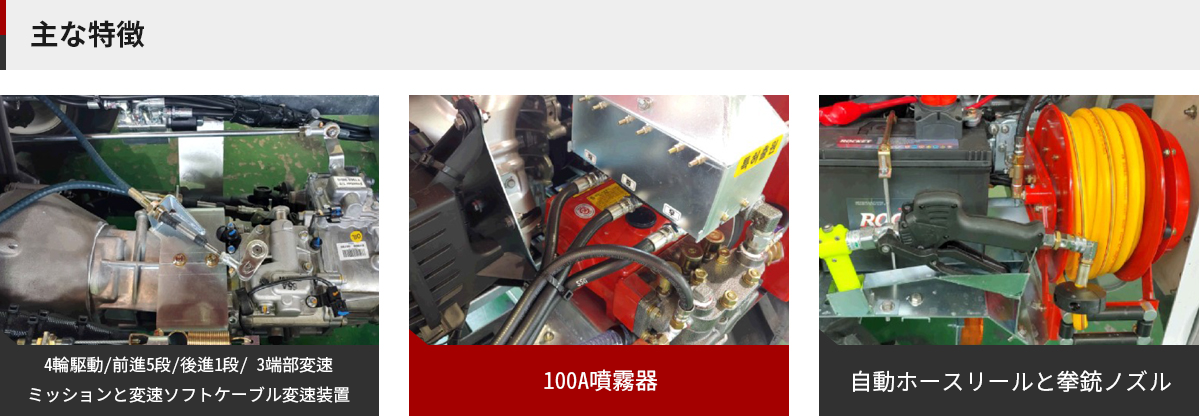

- ダンプ/リフトが可能な運搬車兼用S.S機
- 走行中自由ユン変速と2輪/ 4輪切替可能
- 4輪駆動/ 4輪操舵と編ブレーキ装置
- 前進5段、後進1段、3段部変速システム
- 最大61馬力の現代ガンマ送風エンジン搭載
- 直結式送風システム/動力損失ゼロ/完全バンジェリョク
かんがみエスエスは、さまざまな環境や目的に合った製品を
検証された品質と最新の技術、優れたデザインで提供しています。
かんがみエスエスは、さまざまな環境や目的に合った製品を
検証された品質と最新の技術、優れたデザインで提供しています。
HA-1000WMS Ⅵ
* 製品、外観、仕様、およびオプションなどは、メーカー都合により予告なく変更されることがあります。
噴霧粒子サイズを自由に変更可能で、ノズルの目詰まり現象がない
S.S期ダンプ/リフトが可能な大容量(1t)運搬機能に付加価値を最大化
腐食がない永久アプリケーション塗装方式を採用
MODEL : HA-1000WMS VI |
|||
---|---|---|---|
Capacity |
L |
1000 |
|
Length*Width*Height |
mm |
3945* 1400*1325 |
|
Weight |
kg |
1432 |
|
Driving Part |
Number of speed-changing step |
Forward 5th gear/revers 1st gear/ secondary shift 3rd gear |
|
Steering method |
Handle type |
||
Driving clutch type |
Disc friction type (dry single plate) |
||
Stop brake |
Parking brake |
Disc type (hydraulic)/disc type (combined with stopping brake) |
|
Max. |
km/h |
18 |
|
Min. |
km/h |
3 |
|
Installed Engine Part |
Form |
KOHLER CH740(USA) |
|
Rated output |
kw/rpm |
15/3000 |
|
Maximum output |
kw/rpm |
18.6/3500 |
|
Format and Standard |
2-cylinder 4-cycle air-cooled |
||
Fuel Type |
Unleaded Gasoline |
||
Fuel Tank Capacity |
L |
20 |
|
Lubricant Type |
SAE 10W-30/API SJ, over SL level |
||
Lubricant Volume |
L |
1.5 |
|
Maximum Torque |
Nm |
55.4 |
|
Blower Engine |
form |
G4FC |
|
Rated output |
kw/rpm |
37/3600 |
|
Maximum output |
kw/rpm |
45/5000 |
|
Format and Standard |
Water-cooled four-cylinder gasoline engine |
||
Fuel Type |
Unleaded gasoline |
||
Fuel Capacity |
L |
30 |
|
Fan power transmission method |
SAE 10W-30/API SH, over SJ level |
||
Capacity |
L |
3.3 |
|
Maximum Torque |
Nm |
14.5 |
|
Blower |
Spray method |
type |
Axial flow type/Both side spray type |
Discharger diameter |
Ø |
710 |
|
Number of rotations |
rpm |
2800 |
|
Air volume |
m3/min |
588 |
|
Fan power transmission method |
Single friction clutch type |
||
Sprayer |
Type name |
YH-100A |
|
Format |
Horizontal triple plunger type |
||
Number of rotations |
rpm |
750 |
|

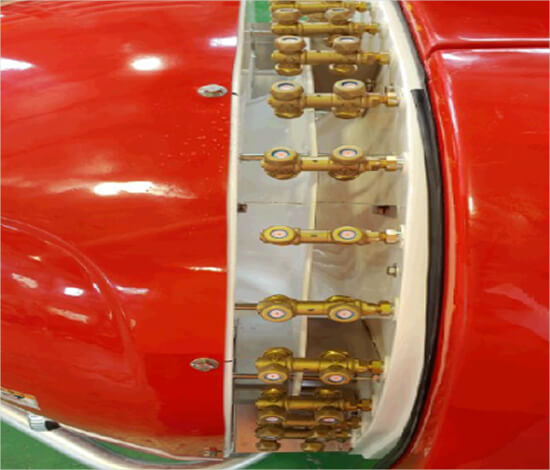

Nozzle type |
Blower Head |
Disc type Ø 1.0mm ⅹ 36ea, Ø 1.2mm ⅹ 36ea(Selection 1.4) |
|
Driving type |
Wheel type |
